MDI 100/1000Base-Fx Fiber Ethernet Media Converter 20km

Name: MDI 1001000BaseFx Fiber Ethernet Media Converter 20km
Brand: E-link
Price: 1 USD

Buy cheap MDI 100/1000Base-Fx Fiber Ethernet Media Converter 20km product

Brand Name : E-link

Model Number : LNK-M3011 series

Certification : CE FCC RoHS

Place of Origin : Guangdong

MOQ : 1 pc

Price : Please contact seller

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 10000 per mouth

Delivery Time : 5-10 working days

Packaging Details : Standard export package

Product name : Ethernet Media Converter

Power supply : DC 5~15V

Working Temperature : 0~45ºC

Dimension : 62 x 44 x 18 mm

Wavelength : 1310/1550nm

Warranty : 3 Years

Contact Now

Microtype 10/100/1000Base-Tx to 100/1000Base-Fx Ethernet Media Converter

Overview

LNK-M3011 series 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 20km (Up to 120km) via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

This media converter is super mini in size, it’s easy to install and integrated in other equipment. It supports both 100M and 1000M on fiber port, that makes it compatible with more devices.

Features

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Microtype design

► Supporting full-duplex and half-duplex and its auto-sensed

► Support 9k jumbo frame 量的产品信息将更容易获得曝光和询盘!想知道产品内容是否需要优化吗? 马上检测一下吧.

我已阅读并接受<宜选网用户使用协议>

← 上一条下一条 →

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber

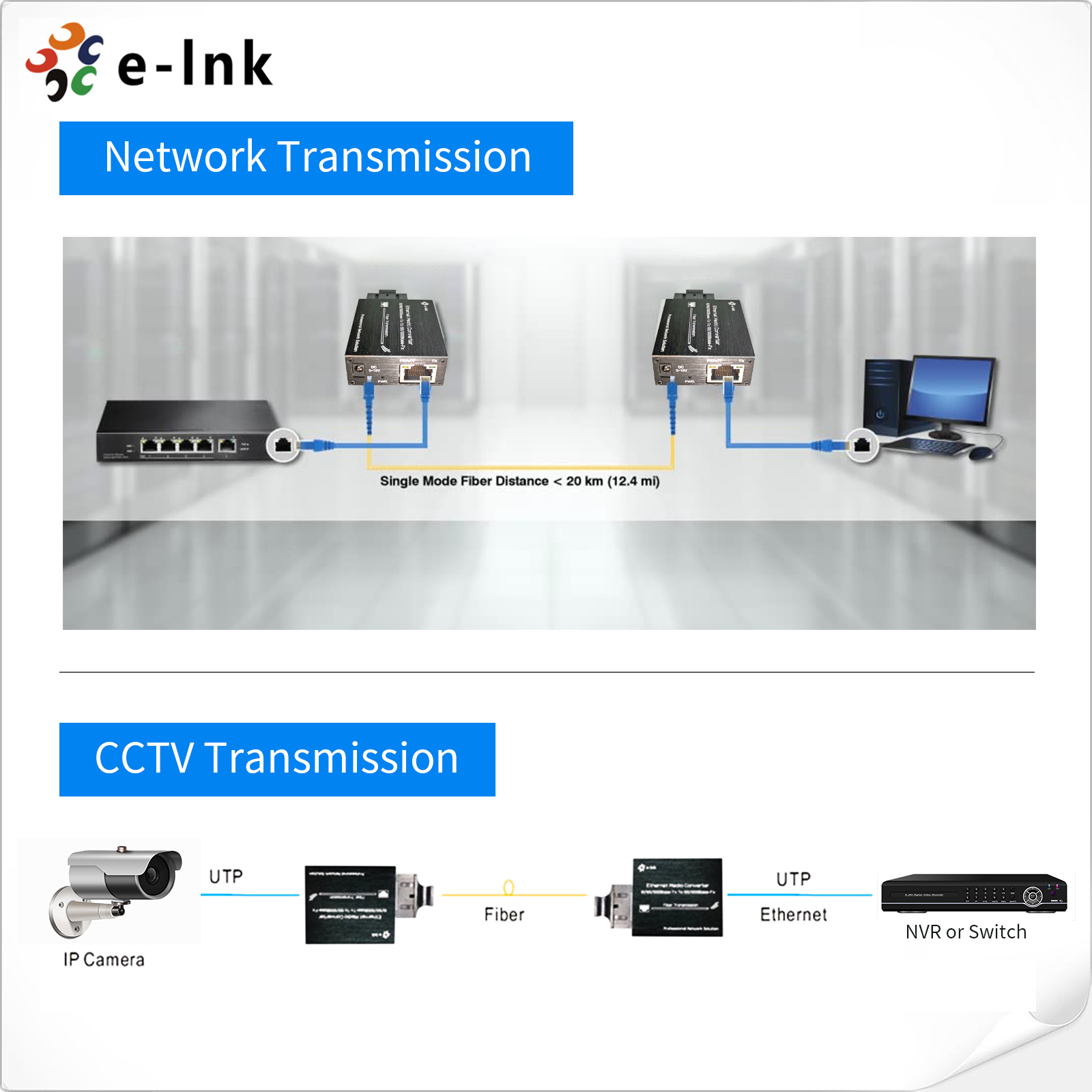

Typical Application

MDI 100/1000Base-Fx Fiber Ethernet Media Converter 20km

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Fiber Port	1 SC Fiber Port, 100Base-FX or 1000Base-X dual mode (auto detection)
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm) single mode Dual-fiber: 20/40/60/80 Km single mode Single fiber: 20/40/60/80 Km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs One optical port: Multi-mode Dual-fiber: SC (50, 62.5/125μm) Single mode Dual-fiber: SC (9/125μm) Single mode Single fiber: SC (9/125μm)
Conversion means	Media conversion
LFP	Not Support
BER	<10^-9
MTBF	100,000 hours
LED indicator	PWR (Power supply) TX (LINK100/1000, TP cable rate 100/1000M) FX/ACT (Optical link action /TP cable packet forwarding action)
Power supply	DC 5~15V
Power consumption	3W
Operating temperature	0~45ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	62 x 44 x 18 mm

Ordering Information

Item	Description
Item	Description
LNK-M3011	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor
LNK-M3011-20	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-M3011S-20	Microtype Media Converter: 10/100/1000Base-T to 100/1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
