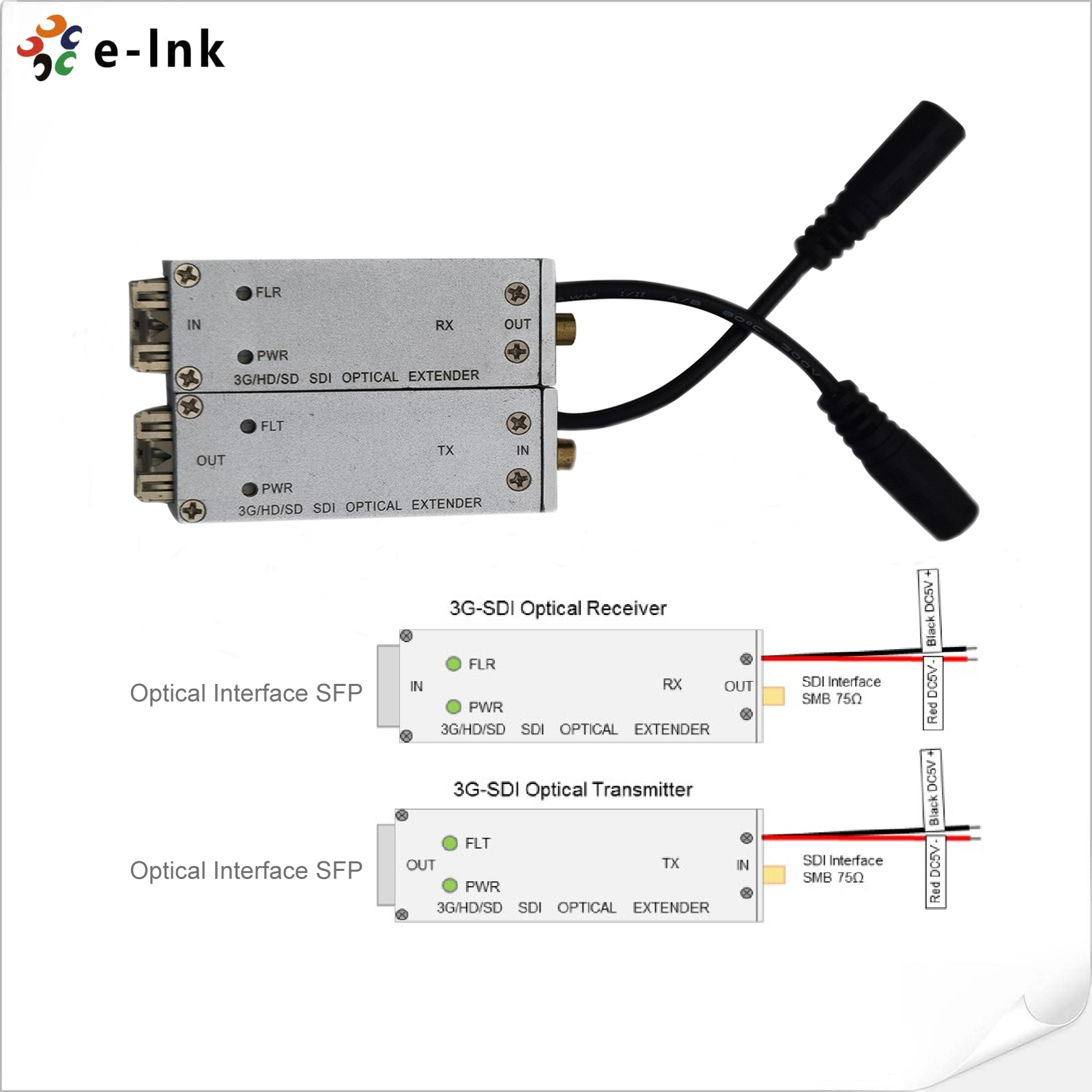

SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC

Brand Name : E-link

Model Number : LNK-M3G-SMB1V-20

Certification : CE

Place of Origin : China

MOQ : 1pairs

Price : USD149/Pairs

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 1000000Pairs/Month

Delivery Time : 3-5 working days

Packaging Details : Standard Carton Packaging

Product name : SMB 3G/HD/SD-SDI to Fiber Converter

Standard SM wavelength : 1310nm, 1550nm

Connector : SMB

SFP : Simplex LC, 20km

Resolution : 10 Bit

Temperature range : -20~+70

Power : 5VDC, 1A

Dimensions (LxWxH) : 58x21x20 mm

Weight : 100g/pair

Casing : Aluminum Case

Contact Now

SMB 3G/HD/SD-SDI Video Signal 20KM Transmission over Optical SDI Fiber Converter



Product Description

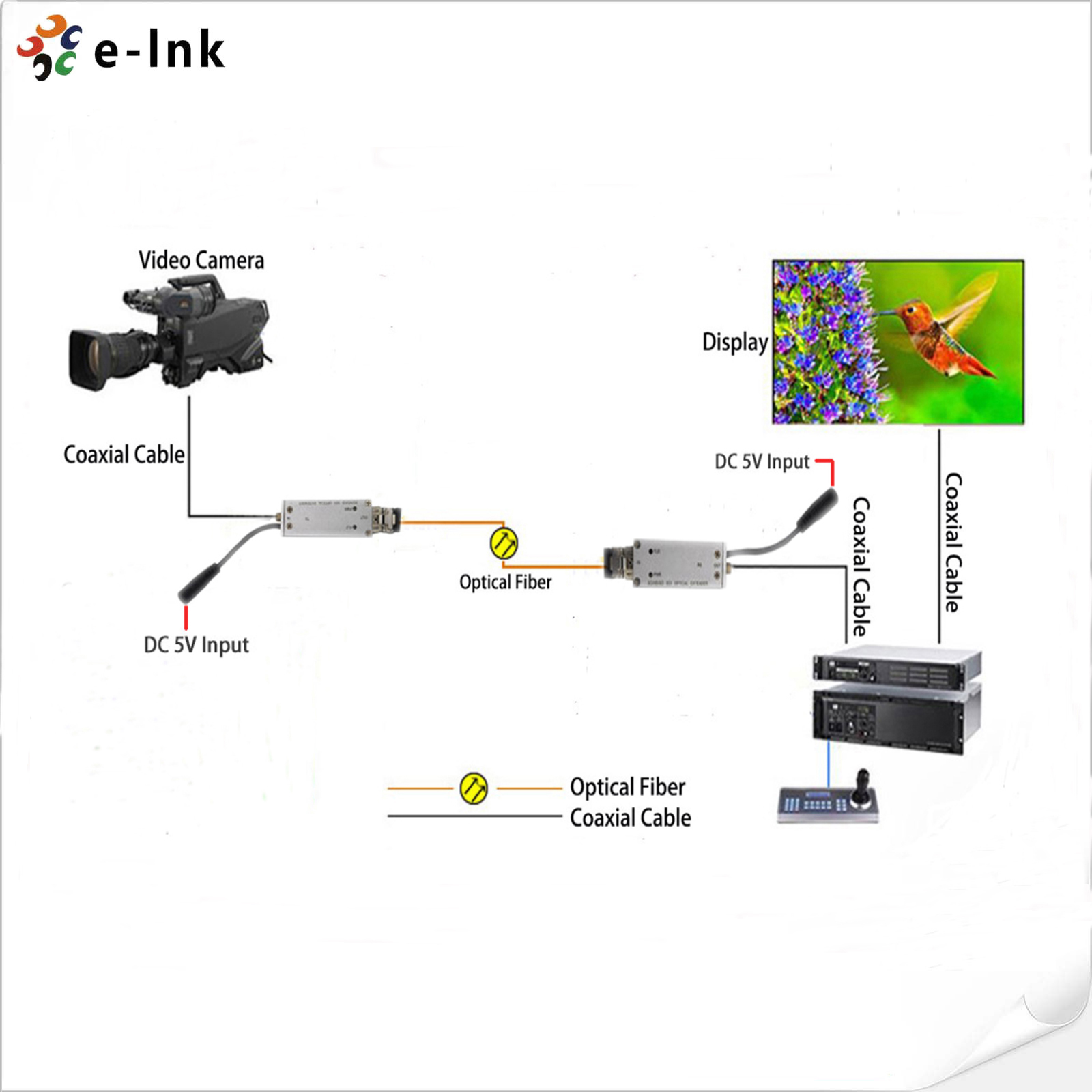

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.



Technical Indexes

SDI Input
Video standard SMPTE424N, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)
Signal standard SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Resolution 10 Bit
Signal level <380mVp-p
Impedance 75Ω
Connector SMB
SDI output
Signal level 800mVp-p±10%
Rise/Fall time <0.8ns
HD-SDI Jitters <0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz
SDI Jitters <0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz
Impedance 75Ω
Connector SMB
Optical Interface
SFP Simplex LC, 3,125Gbps. ≤120km transmission distance
Standard SM wavelength 1310nm, 1550nm
CWDM wavelength 1270~1610nm, 20nm grid according ITU-T
Temperature range 0~70
Electrical
Power 5VDC, 1A
Consumption <5W
LED Indicator
FLT Fiber link status (Transmitter)
FLR Fiber link status (Receiver)
PWR Power status
Mechanical
Dimensions (LxWxH) 58 x 21 x 20 mm
Weight 100g/pair
Casing Aluminum Case
Mounting Options Desktop
Environmental
Working Temperature -20~+70
Storage Temperature -40~+80
Working Humidity 0~95%
MTBF ≥100000 hours



SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC

SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC

SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC

SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC

SMB 3G HD 1310nm 20KM SDI To Fiber Optic Converter Simplex LC
