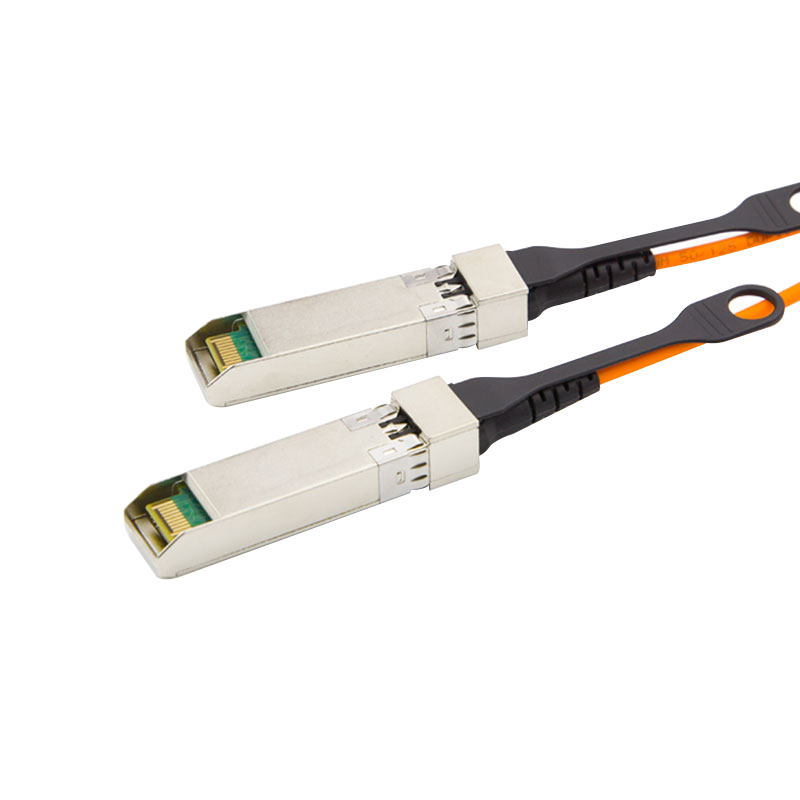

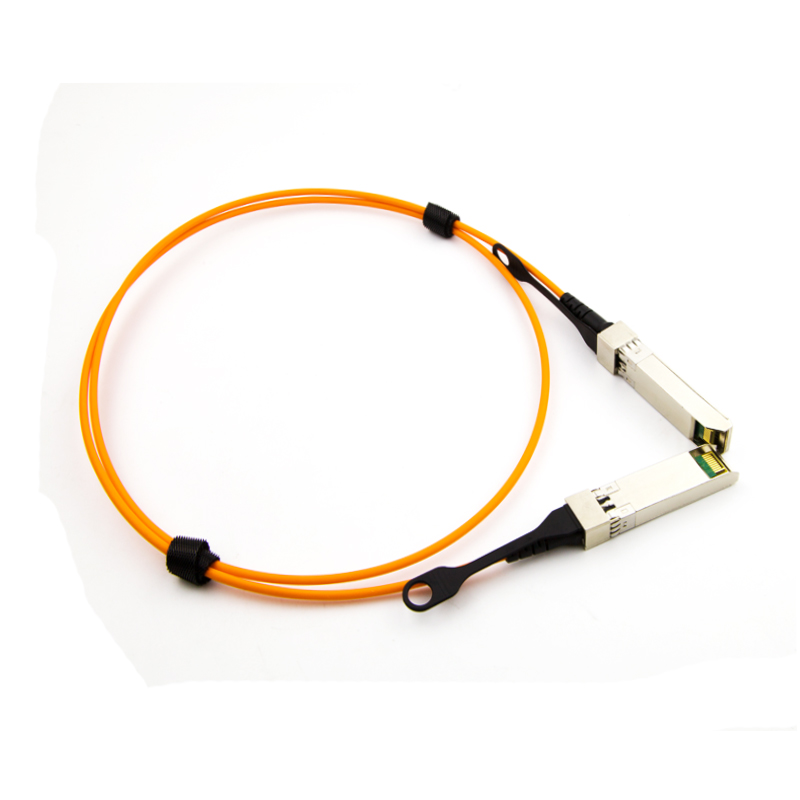

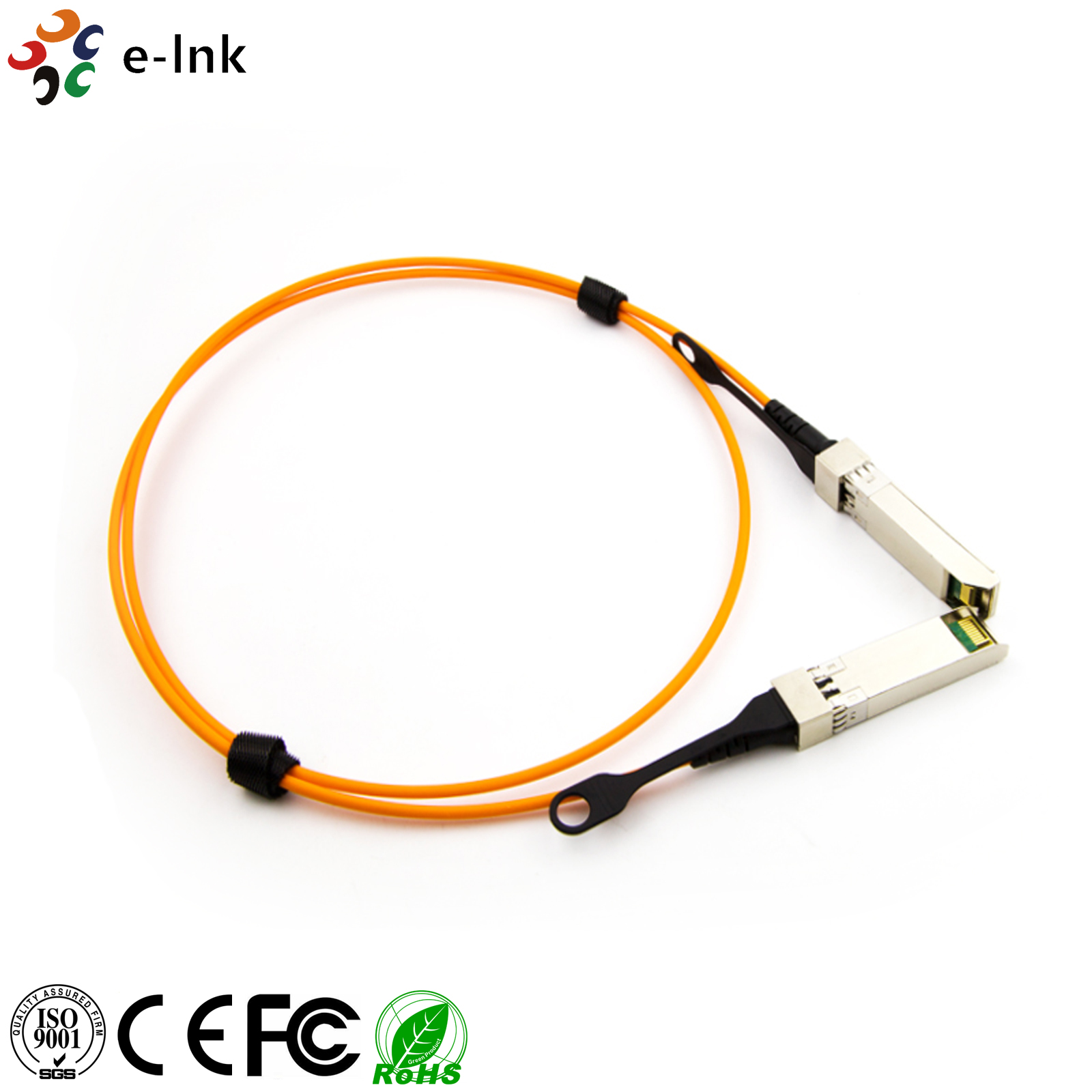

Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+

Brand Name : E-link China

Model Number : LNK-AA18M2-1

Certification : CE, RoHS, FCC

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 99999999pieces/month

Delivery Time : 3-7 working days

Packaging Details : Carton Box

Product Name : SFP+ Active Optical Cable

Power Supply : 3.3V

Length : 1 meter

Speed : 10G

Fiber Type : OM2

Wavelength : 850nm

Operating Case Temperature : -5~75℃

Applications : Datacom

SFF-8431 and SFF-8432 : Compliant

SFF-8472 Rev 10.2 : Compliant

Contact Now

OM2 Cable Length 1m 10G SFP+ to SFP+ Active Optical Cable SFP Optical Transceiver



Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+1. Applications

  • Datacom
  • 10G Ethernet
  • Other high-throughput data transmission network



2. Features



  • 10Gb/s active optical cable up to 100m MMF
  • 850nm VCSEL and PIN receiver
  • Single 3.3V power supply
  • Operating Case Temperature: -5~75℃
  • Hot pluggable
  • Low Power Consumption
  • Light weight
  • Small Bend Radius
  • Digital Diagnostic Monitor(DDM)
  • All-metal Housing for Superior EMI Performance



3. Description

E-link’s LNK-AA18MX-XXX SFP+ Active Optical Cable (AOC) is a 10Gbps solution to 10G Ethernet, and data center. The integrated cable transmits 10Gbps data in each direction over MMF with distance up to 100m. The AOC is SFP+ MSA compliance, low power consumption and lightweight.





4. standard

  • Compliant with SFF-8431 and SFF-8432
  • Compliant with SFF-8472 Rev 10.2
  • Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
  • RoHS Compliant



5. Performance Specifications

5.1. Absolute Maximum Ratings

These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.

Table.1 Absolute maximum ratings

Parameter Symbol Min Max Units
Storage temperature Ts -20 85
Relative Humidity RH 5 85 %
Supply Voltage Vc -0.3 3.6 V
Supply Current Icc   450 mA



5.2. Recommended Operating Conditions

Table.2 Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case Temperature Standard Tc 0 25 70 °C
Power Supply Voltage Vcc 3.13 3.3 3.47 V
Power Supply Current Icc   60 260 mA
Power Dissipation PD   600 800 mW
Data Rate DR   10.3125   Gbps
Transmission Distance TD     100 m


5.3. Transmitter Specification

Table.3 Transmitter Specification (Optical)

Parameter Symbol Min. Typ. Max. Unit Note
Average Output Power Po -5   -1 dBm
Disable Power Poff     -40 dBm
Extinction Ratio ER 3.5     dB
Output Centre Wavelength λc 840   860 nm


Table.4 Transmitter Specification (Electrical)

Parameter Symbol Min Typical Max Unit
Data Input Swing Differential VIN 200   700 mV
Input Differential Impedance ZIN 90 100 110 Ω
Transmit Disable Input High VIH 2.0   Vcc+0.3 V
Low VIL 0   0.8 V



5.4. Receiver Specification

Table.5 Receiver Specification (Optical)

Parameter Symbol Min Typical Max Unit note
Centre Wavelength λc 840 850 860 nm
Receiver Sensitivity Sen     -11 dBm 1
Receiver Overload Psat 0.5     dBm 1
LOS De-Assert LOSD     -15 dBm
LOS Assert LOSA -30     dBm
LOS Hysteresis   0.5   4 dB
Receiver Reflectance Rrx     -12 dB

Note :1. Measured at BER 10-12, 10.3Gbps, PRBS2^31-1, NRZ



Table.6 Receiver Specification (Electrical)

Parameter Symbol Min Typical Max Unit note
Data Output Swing Differential Vout 300   800 mV
Rx-Los Fault Vlf 2.0   VccHOST V
Rx-Los Normal Vln 0   0+0.8 V
Output rise and fall time Tr, Tf 28     ps







5.5. Diagnostics Specification



Table.7 Diagnostics Specification

Parameter Range Unit Accuracy Calibration
Temperature 0 to 70 ±3℃ Internal / External
Voltage 3.0 to 3.6 V ±3% Internal / External
Bias Current 0 to 100 mA ±10% Internal / External
TX Power -5 to -1 dBm ±3dB Internal / External
RX Power -30 to 0 dBm ±3dB Internal / External





Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+Active Optical Cable Fiber Optic Transceiver Module OM2 Cable Length 1m 10G SFP+ To SFP+
