Self Adaptive Mini Media Converter 10 / 100 / 1000 BASE-T To 100 / 1000 BASE-X SFP

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-M3011-SFP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 2000pcs/per month

Delivery Time : 7 working days

Packaging Details : Fiber Media Converter standard export package

Key words : media converter ethernet to fiber optic

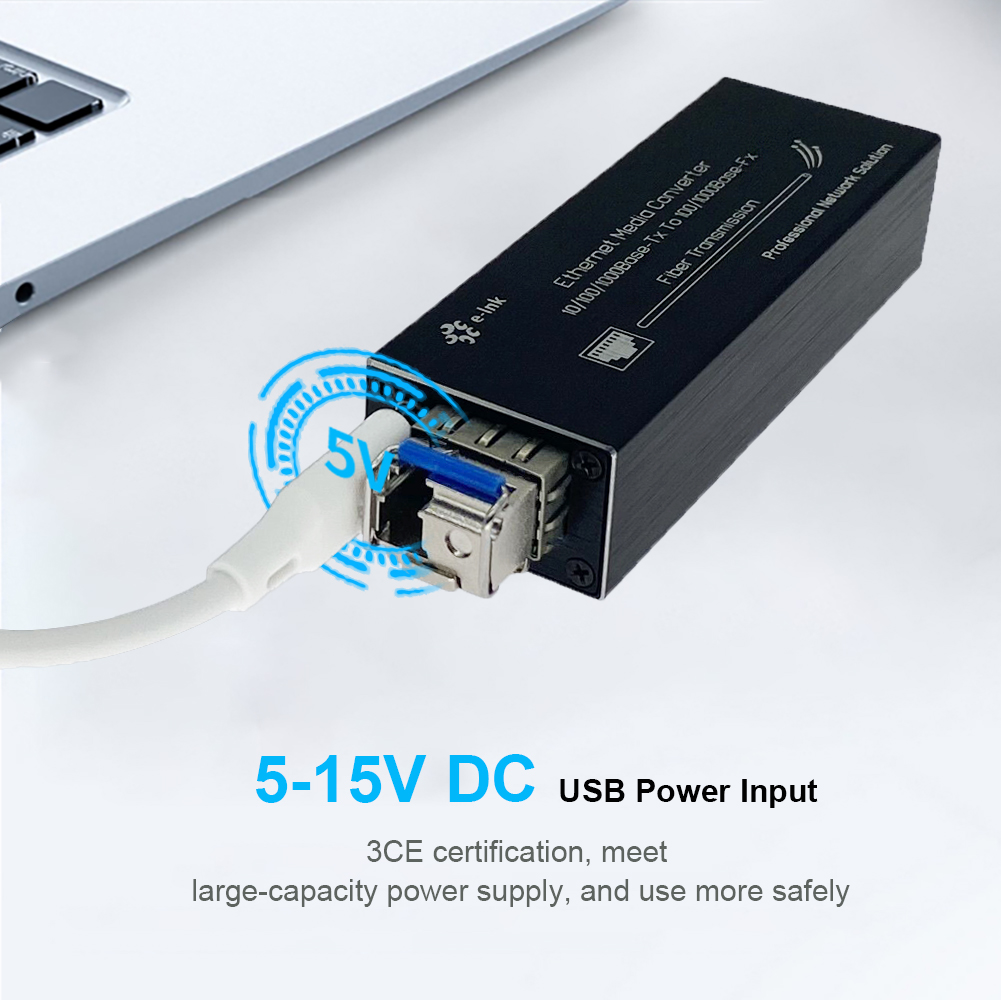

Input Power : 5~15VDC wide range

Port : 1-port RJ45, 1-port SFP

Fiber Port : 100/1000M adaptive

Weight : 46g

MTBF : 100,000 hours

Contact Now

Micro 10/100/1000BASE-T to 100/1000BASE-X SFP Self-Adaptive Fiber Media Converter

Gigabit Media Converter Advantages

► USB-powered for portability

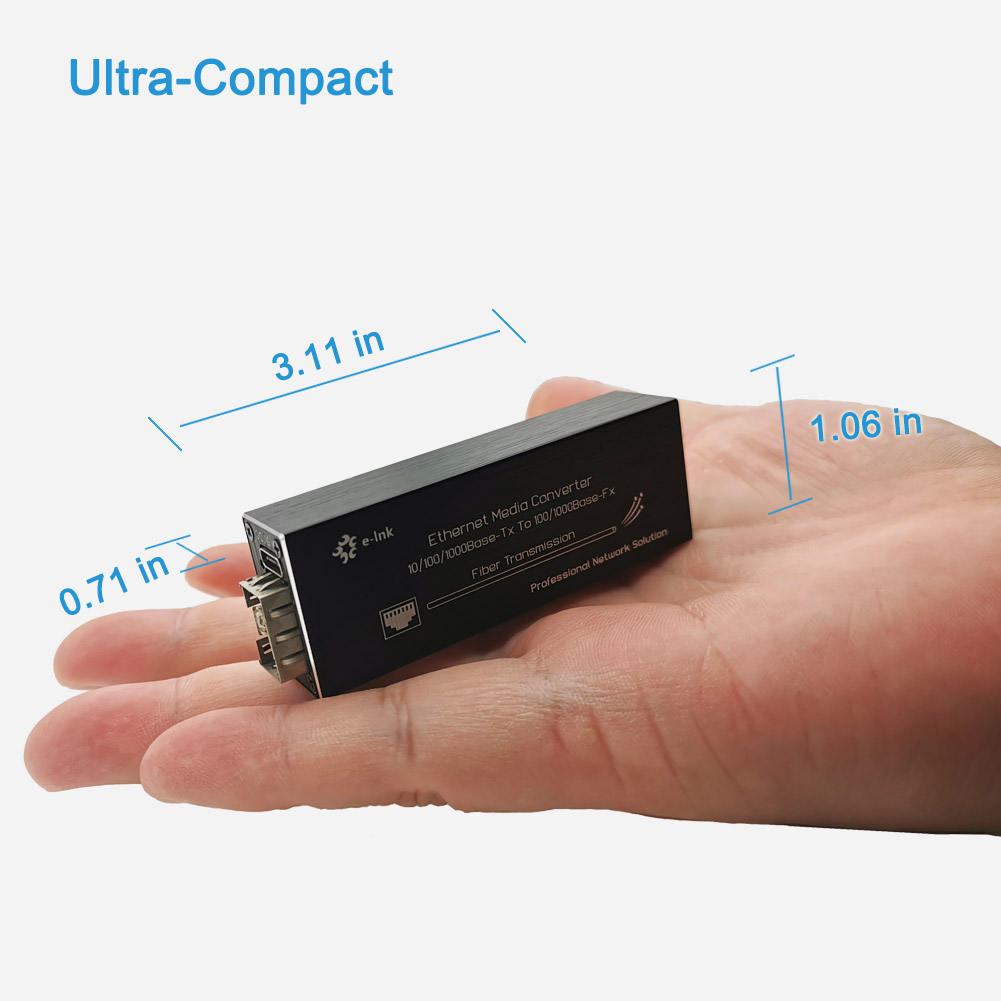

► Ultra compact and weigh less than 2 ounces

► Support 9k jumbo frame

► Including a Power Supply

► Smallest media converters available; tuck the unobtrusively behind a PC

Copper To Fiber Media Converter Technical Indexes

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm (Based on SFP Module used)

Transmission distance

Fiber Cable: Depends on SFP Module

Category-5 twisted pairs: 100m

Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One Optical port: SFP

Conversion means

Media conversion

LFP

Not Support

MTBF

100,000 hours

LED indicator

PWR (Power supply)

TX (LINK100/1000, TP cable rate 100/1000M)

FX/ACT (Optical link action /TP cable packet forwarding action)

Overview

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

Self Adaptive Mini Media Converter 10 / 100 / 1000 BASE-T To 100 / 1000 BASE-X SFP

Self Adaptive Mini Media Converter 10 / 100 / 1000 BASE-T To 100 / 1000 BASE-X SFP

Ordering Information

Model

Description

LNK-M3011-SFP

Micro Mini Media Converter: 10/100/1000Base-T to 100/1000Base-X, SFP slot, standalone, external power adaptor




Product Tags:

SFP Fiber Media Converter



standalone Mini Media Converter



Self Adaptive Mini Media Converter
