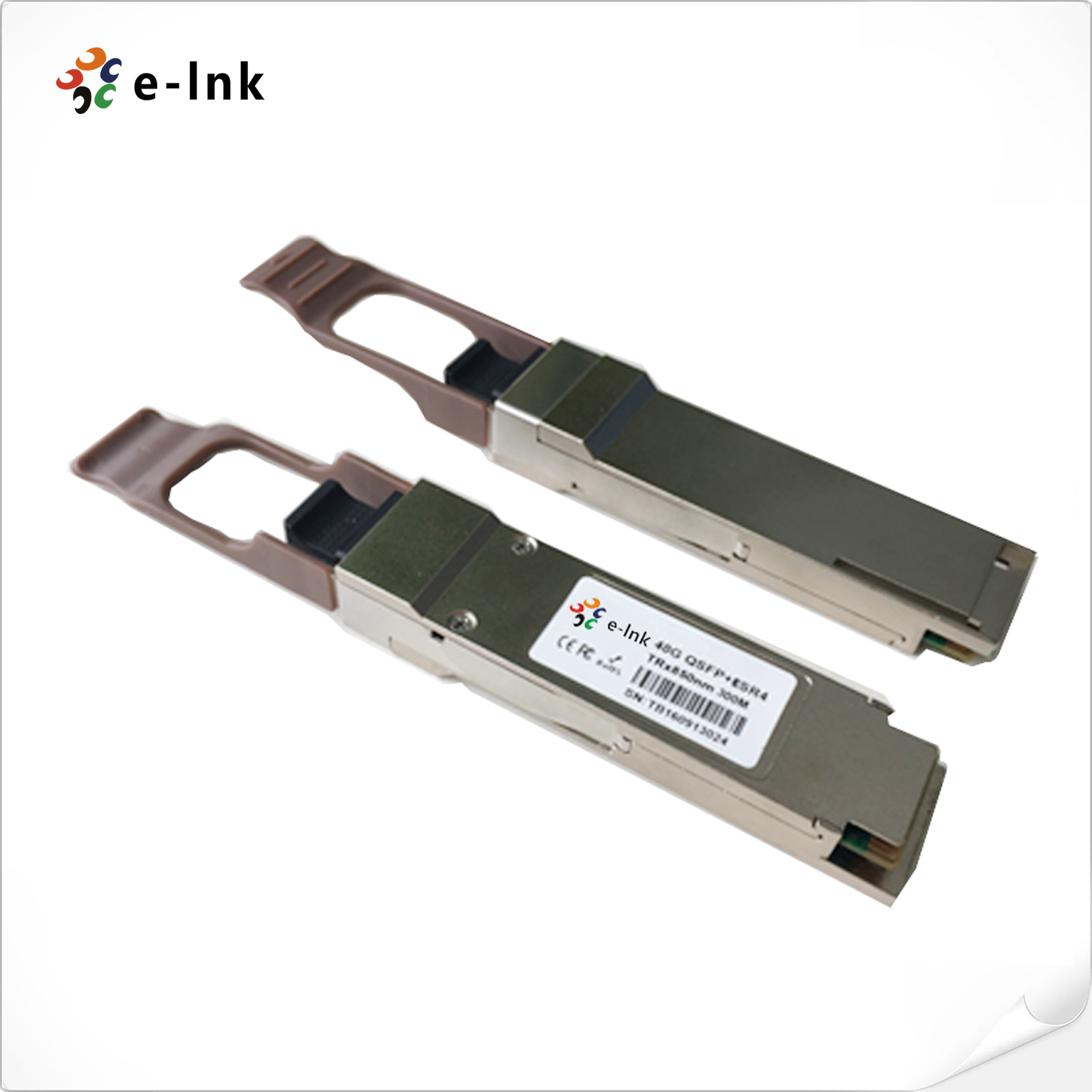

QSFP Optical Transceiver Module 40G Multimode Fiber Transceiver 850nm MTP MPO Connector 300M

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-QSFP-CSR4

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 20000pcs/per month

Delivery Time : 7 Working days

Packaging Details : SFP Fiber Transceiver Standard Export Package

Keywords : Optical transceiver module

Aggregate bandwidth : 40Gbps

Connector : MTP/MPO Connector

Wavelength : 850nm

Transmission distance : 300m (OM3); 400m (OM4)

Temperature range : 0°C ~ 70°C

Contact Now

QSFP Fiber Transceiver 40G Multimode 850nm MTP MPO Connector 300M
40G QSFP+ Transceiver Advantages
► 4 independent full-duplex channels
► TX input and RX output CDR retiming
► CML compatible electrical I/O
► MTP/MPO optical connector
► Built-in digital diagnostic functions

Technical Indexes

Parameter

Symbol

Min

Typ

Max

Unit

Note

Data Rate per Channel



-

10.3125

11.2

Gbps



Power Consumption



-

2.5

3.5

W



Supply Current

Icc



0.75

1.0

A



Control I/O Voltage-High

VIH

2.0



Vcc

V



Control I/O Voltage-Low

VIL

0



0.7

V



Inter-Channel Skew

TSK





150

Ps



RESETL Duration





10



Us



RESETL De-assert time







100

ms



Power On Time







100

ms



Transmitter

Single Ended Output Voltage Tolerance



0.3



4

V

1

Common mode Voltage Tolerance



15





mV



Transmit Input Diff Voltage

VI

120



1200

mV



Transmit Input Diff Impedance

ZIN

80

100

120





Data Dependent Input Jitter

DDJ





0.1

UI



Data Input Total Jitter

TJ





0.28

UI



Receiver

Single Ended Output Voltage Tolerance



0.3



4

V



Rx Output Diff Voltage

Vo



600

800

mV



Rx Output Rise and Fall Voltage

Tr/Tf





35

ps

1

Total Jitter

TJ





0.7

UI



Deterministic Jitter

DJ





0.42

UI



Overview

The LNK-QSFP-CSR4 is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

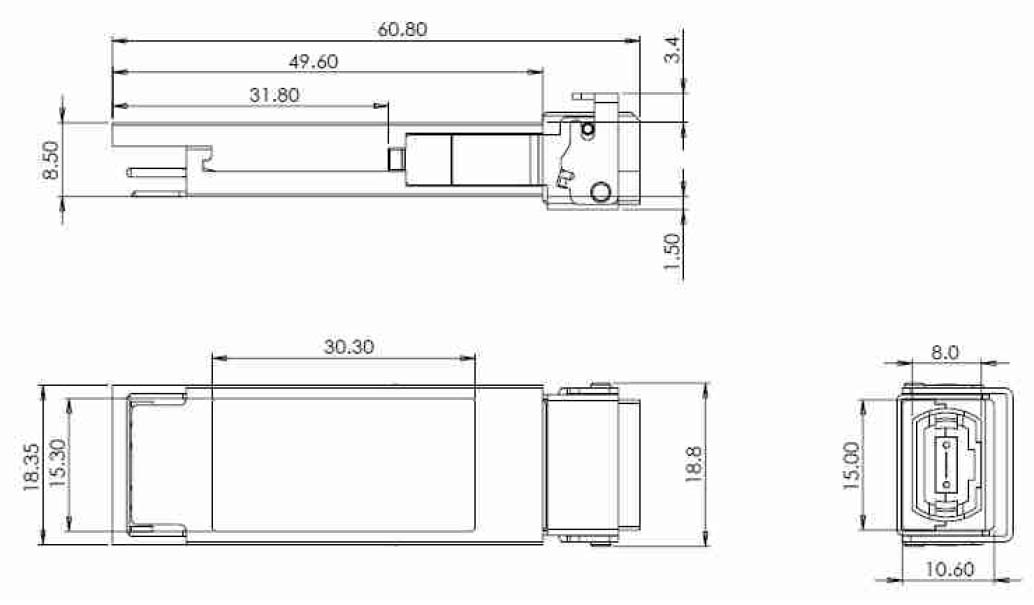

QSFP Optical Transceiver Module 40G Multimode Fiber Transceiver 850nm MTP MPO Connector 300M
QSFP Optical Transceiver Module 40G Multimode Fiber Transceiver 850nm MTP MPO Connector 300M

Ordering Information

Part Number

 Description

LNK-QSFP-CSR4

40G QSFP+ 850nm 300m CSR4 MPO

Product Tags:

QSFP Optical transceiver module



Optical transceiver module 850nm



40G multimode fiber transceiver
