1550nm SDI To Fiber Optic Converter 3G 5W DWDM With 4Ch HDMI Output

Name: 1550nm SDI To Fiber Optic Converter 3G 5W DWDM With 4Ch HDMI Output
Brand: E-link
Price: 1 USD

Buy cheap 1550nm SDI To Fiber Optic Converter 3G 5W DWDM With 4Ch HDMI Output product

Brand Name : E-link

Model Number : LNK-3G-1V4H

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pair

Price : negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pairs/month

Delivery Time : 7 days

Packaging Details : SDI To Fiber Optic Converter standard export package

Keywords : 3G sdi to hdmi converter

Fiber interface : Simplex LC

Video interface : BNC

Wavelength : 1310nm / 1550nm

Transmission distance : 550m-20Km

Video Bits Rate : Max 3.2Gb/s

Contact Now

SDI To Fiber Optic Converter 1Ch 3G-SDI Fiber Extender With 4Ch HDMI Output

3G-SDI Converter Advantages

► Transmitter with 1Ch 3G-SDI input and loop out

► Receiver with 1Ch 3G-SDI output and 4Ch HDMI output

► Fiber optic WDM/CWDM/DWDM technique

► Long transmission capability at least 10 km (6.2miles) , up to 80 km

Technical indexes

Video - HDMI
Connector	Female HDMI type A
Impedance	100Ω
Resolution	Up to 1920*1200@60Hz
HDMI Cable Range	<5Meter
Electrical
Power adaptor	DC5V
Power consumption	<5W
Mechanical

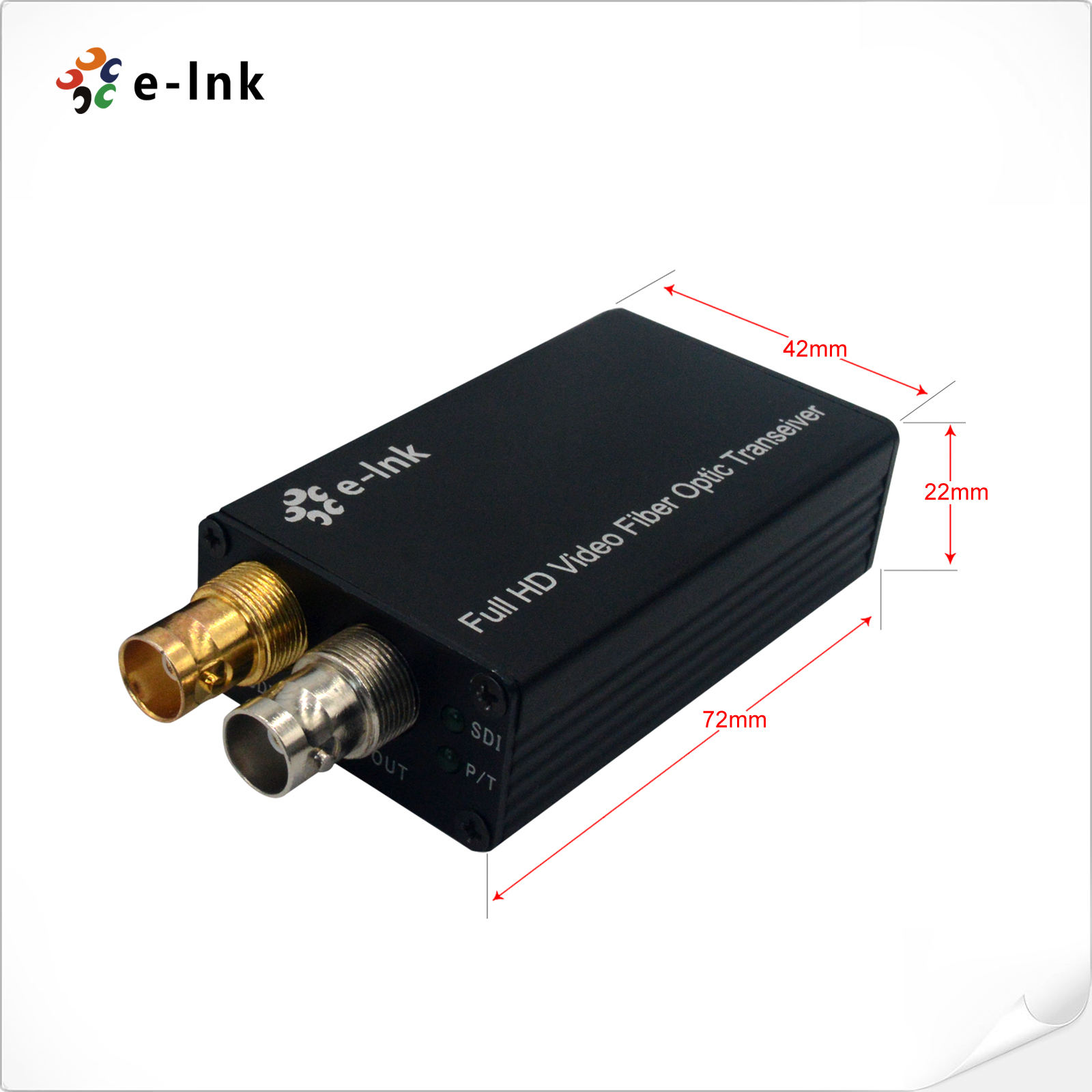

Dimensions (LxWxH)	Transmitter: 72 x 42 x 22 mm

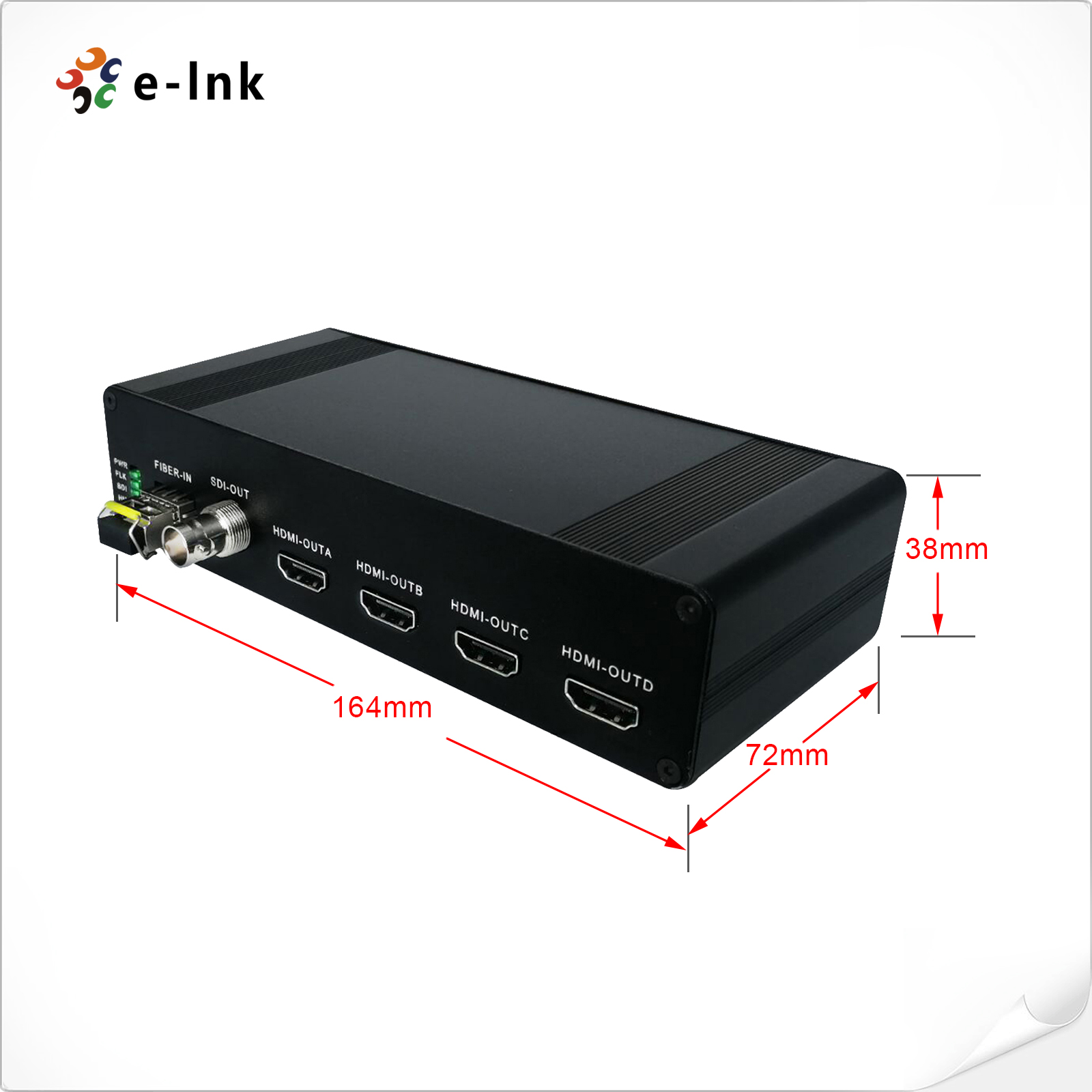

Dimensions (LxWxH)	Receiver: 164 x 72 x 38 mm
Weight	1.5KG/pair
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Overview

LNK-3G-1V4H Series 3G-SDI Fiber Extender supports 1-channel 3G-SDI Video (audio embedded) transmitted via fiber optical cable, and monitor the signal locally over a 3G-SDI loop output. E-link 3G-SDI Video over Fiber Converters includes one transmitter with loop out and one receiver with 1Ch 3G-SDI and 4Ch HDMI Output.

1550nm SDI To Fiber Optic Converter 3G 5W DWDM With 4Ch HDMI Output

Ordering Information

Model	Description
LNK-3G-1V4H	3G-SDI Fiber Extender, Transmitter with 3G-SDI input and loop out, Receiver with 1Ch 3G-SDI output and 4Ch HDMI output, SMF, LC Fiber Connector 20KM, used by pairs
