Brand Name : E-link
Model Number : LNK-106M
Certification : CE,FCC,RoHs
Place of Origin : China
MOQ : 1 pair
Price : Negotiation
Payment Terms : Western Union, L/C, T/T, MoneyGram
Supply Ability : 2000 pairs/month
Delivery Time : 7 days
Packaging Details : HDMI Fiber Optic Converter standard export package
Keywords : Fiber optic to hdmi converter
Resolution : 4K*2K@30Hz
Fiber Connector : Double LC Receptacle
Transmission Distance : 300M
Power Supply : 100~240VAC

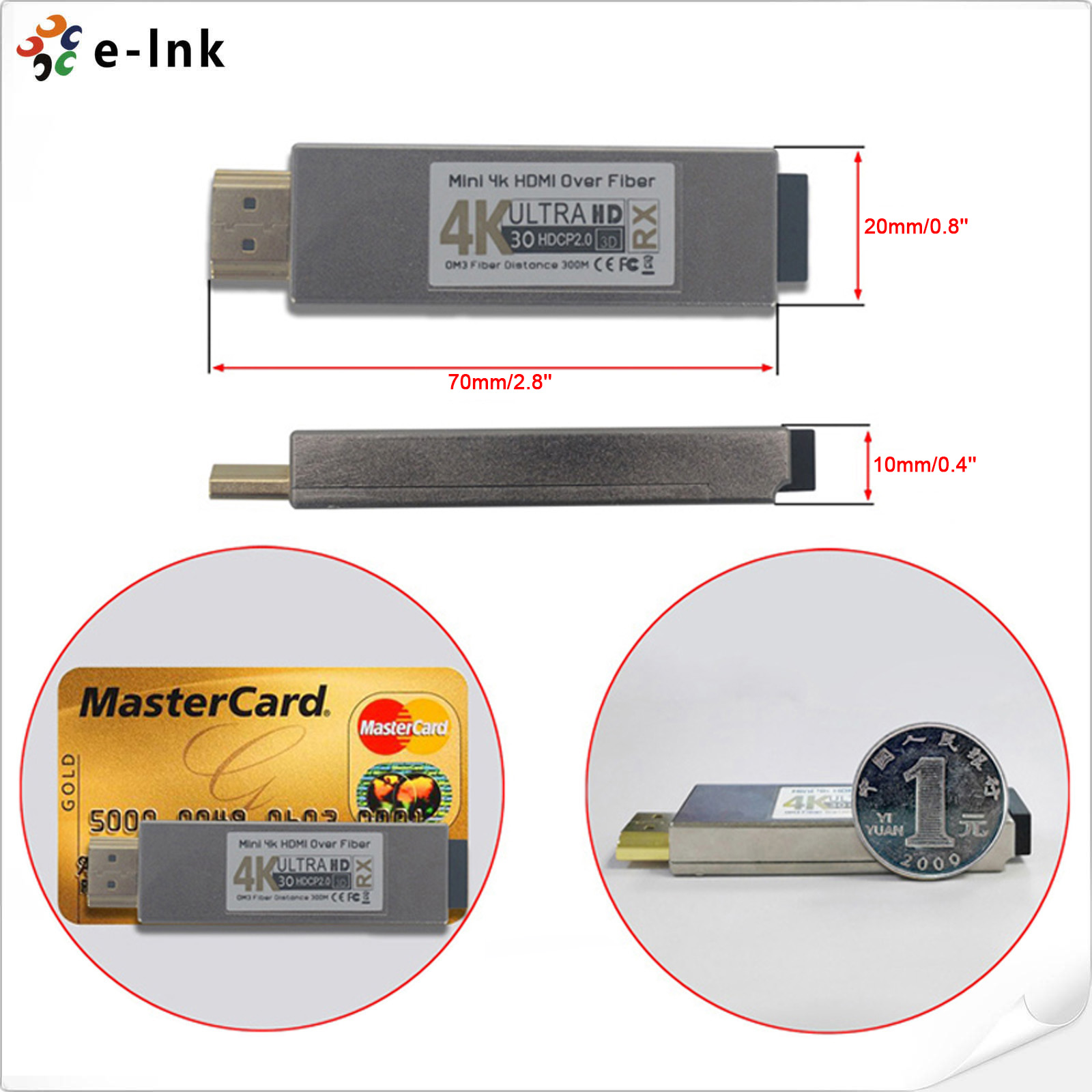

Dimension : 80x20x9mm
HDMI Optical Extender Mini 4K HDMI Uncompressed Transceiver Multi-Mode USB Input
4k hdmi fiber extender Advantages
► Uncompressed transmission, No delay, No losses
► DDC CEC HPD Signal Support
► Integrated USB Connector for Power
► Miniature form factor for ease of use and installation
► 850nm VCSEL and PIN Photodetector
Technical Indexes
Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
Website Specifications | Color space 444, 420, 400 |
Fiber Connector | Double LC Receptacle |
Transmission Distance | Multi Mode, up to 984ft (300M) |
Operating Temperature | 0°C to + 50°C |
Storage Temperature | -20°C to + 85°C |
Humidity | to 90% RH (non-condensing) |
Weight | 0.1 kg / 0.22 lb |
Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Overview
The 4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. 4 K HDMI OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal. This product is ideal for large-screen display, conferencing systems and home entertainment and so on.
Ordering Information
Model | Description |
LNK-106M | Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K), OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, used by pairs, USB Power Input |
![]() |
Mini 4K HDMI Optical Extender Uncompressed Multimode USB Input 300M Images |
