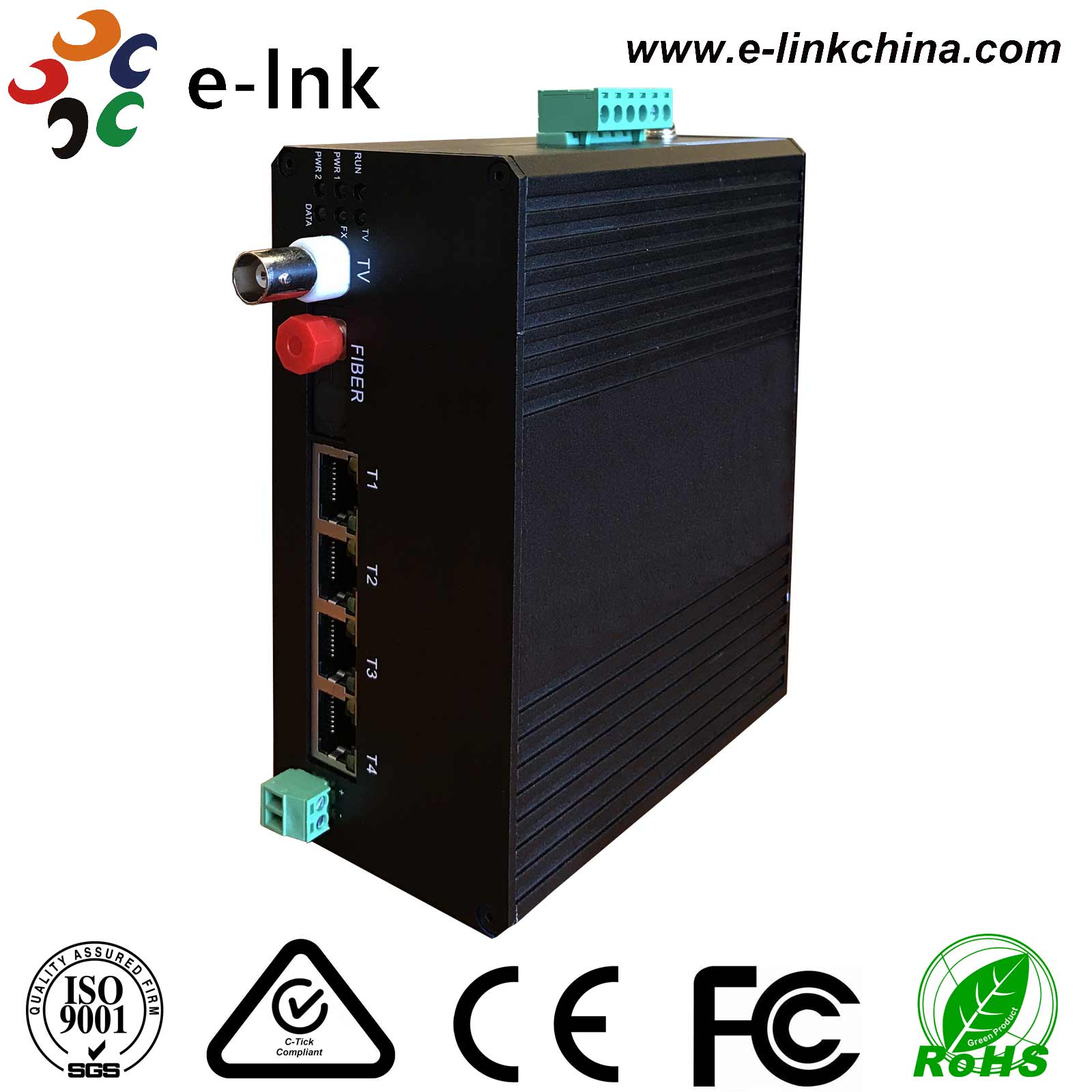

Industrial Video Ethernet Switch: 4x10/100M Ethernet + 1xVideo + 1xRS485 Data + 1xGigabit Fiber
Model: LNK-GY4E1V1D Series
Overview
LNK-GY4E1V1D Series physical isolation Ethernet switch is designed for hardened industrial environment. which provides 4x10/100M Ethernet + 1xVideo + 1xRS485 + 1xGigabit Fiber.
The physical isolated Industrial Ethernet Switch can transmit 4channel separate and fully isolated 10/100M Ethernet.
It's ideal for building an internal network and public network at the same time. And it's also suitable for 4 highly isolated networks occasions and suitable for DSLAM bandwidth expansion without changing the original fiber optical cable.
Technical Indexes
| Parameter | Specifications |
| Ports | 1 x Gigabit Fiber Port (FC default) 4 x 10/100M Ethernet Port with physical isolation to share 100M speed 1 x Analog Video 1 x RS485 Return Data |
| Physical Characteristics | Housing: Aluminum Alloy material with IP40 Protection Dimension: 138mm(L) X 112mm(W) X 60mm(H) Weight: 690g Installation: Din-Rail mounting, Wall mounting |
| Interfaces | 4 RJ45 Ports Comply with IEEE802.3, IEEE802.3u, 10/100Base-T(X) 10/100Base-T(X) auto negotiation speed Full/Half duplex mode Auto MDI-MDI-X connection Up to 100M Cat-5 transmission distance 1 BNC Port Video format PAL/NTSC/SECAM Video Impedance 75Ω 1 Data Port Data Format RS485 1 Fiber Port Comply with IEEE802.3u, 1000Base-FX Rate: 1000Mbps Wavelength: 1310nm/1550nm Up to 500m transmission distance with multi-mode Up to 20km,40km,60km,80km transmission distance with single-mode SC/ST/FC interfaces optional |
| Power | Input Voltage: 24VDC(18-36VDC), Redundant dual inputs Input Current: <0.5A @24VDC Overload Current Protection: Support Reverse Polarity Protection: Support Redundant Protection: Support Connection: 6-pin terminal blocks |
| Environmental Limits | Operating Temperature: -40℃-85℃ Storage Temperature: -40℃-85℃ Ambient Relative Humidity: 5%-95% (non-condensing) |
| Approvals | Safety: UL 60950-1 EMI: FCC Part 15 Subpart B Class A,EN 55022 Class A EMS: • EN61000-4-2 (ESD) , Level 3 • EN61000-4-3 (RS) , Level 3 • EN61000-4-4 (EFT) , Level 3 • EN61000-4-5 (Surge), Level 3 • EN61000-4-6 (CS) , Level 3 • EN61000-4-8, Level 3 Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Industry: IEC61000-6-2 Rail: EN50155, EN50121-4 Traffic: NEMA TS-2 |
| Warranty | 5-year |
Features
· 4 10/100Base-TX, 1 analog Video, 1RS485 Data and 1 1000Base-FX uplink port
· Support 1536 bytes frame; with 1Mbit built-in frame memory
· 4Ethernet Ports support 10/100M auto-negotiation , Full/Half duplex mode, auto-MDI-
MDI-X
· Support 1024 MAC address, with automatic MAC address learning and update functions
· Suitable for DSLAM bandwidth expansion over the existing fiber optical cable
· Automatically select the Store and Forward mode or Cut-Through mode to reduce the delay;
· Support LED to monitor each port’s working state
· Terminal Block Power Input for Industrial Application.
· Super lightening protection, IP40 protection
· Excellent heat elimination without cooling fan
· Redundant dual DC power inputs
· -40℃-85℃ operating temperature range
· DIN-Rail/ Wall-mounting

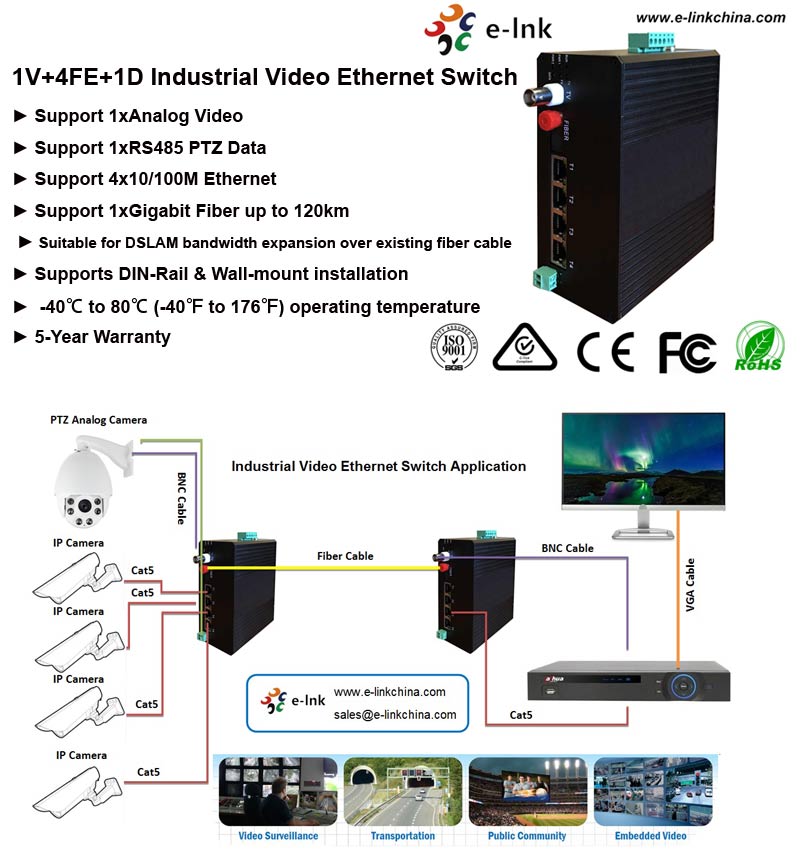

Application Diagram
