Industrial Ethernet Media Converter's Product Description:
LNK-IMC10GP30-SFP+ is Industrial-grade 10G 802.3at PoE Media Converter providing non-blocking wire-speed performance and great flexibility for 10Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 100Mbps/1Gbps/2.5Gbps/5Gbps/10GBASE-T RJ45 copper interface and one 10GBASE-X SFP+ fiber optic interface delivered in an IP40 rugged but compact-sized case with redundant power system. The LNK-IMC10GP30-SFP+ is ideal for wide applications from copper to fiber media conversion wherever 10Gigabit bandwidth is required in climatically demanding environments with wide temperature ranging from -40℃ to 80℃.
Industrial Ethernet Media Converter's Features:
LNK-IMC10GP30-SFP+ presents the following characteristics:
► 100/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X function, 10GBASE-X SFP+ slot interface
► Compliant with IEEE802.3af/at protocol
► Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
► Extensive LED indicators for network diagnostics
Industrial Ethernet Media Converter's Technical Parameters:
| PoE Standard | IEEE802.3af/at |
| Forward & Filtering Rate: | 100Mbps |
| | 1000Mbps |
| | 2.5Gbps |
| | 5Gbps |
| | 10Gbps |
| Processing Type: | Store-and-Forward |
| Fabric: | 20Gbps |
| Jumbo Frame: | 16K |
| Address Table: | 9K entries, automatic source address learning and aging |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |

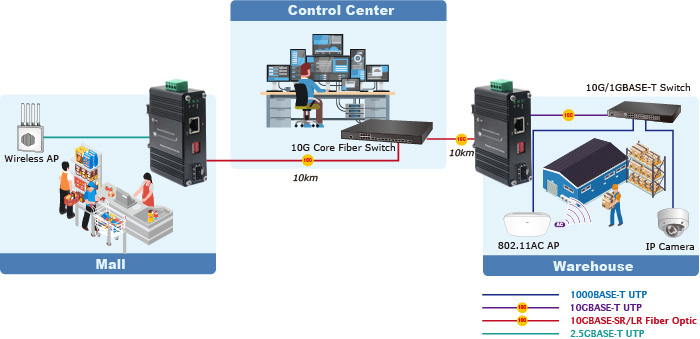

Industrial Ethernet Media Converter's Applications:
Industrial Ethernet Media Converter's Support and Services:
Industrial Ethernet Media Converter technical support and service includes:
- 24/7 technical support
- On-site troubleshooting and repairs
- Remote technical support
- Firmware updates and upgrades
- Hardware replacement
- Maintenance and preventive care
- Customized system integration and optimization services
Industrial Ethernet Media Converter’s Packing and Shipping:
Industrial Ethernet Media Converter Packaging and Shipping:
- Each Industrial Ethernet Media Converter is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
- The box is then placed in a larger, outer box with additional packing materials to ensure the converter remains undamaged during transit.
- The box is then sealed and shipped to the customer via a reliable shipping carrier.
Industrial Ethernet Media Converter's Ordering Information:
| Model | Description |
| LNK-IMC10GP30-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| | ► SFP+ module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► Power Supply is to be purchased separately. |
