SDI Over Fiber Optic Extender's Product Description:
This SDI Over Fiber Optic Extender 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded) &1Ch Gigabit Ethernet&2Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.
SDI Over Fiber Optic Extender's Features:
► Each SDI channel includes 8-channel audio embedded
► Automatic cable equalization to ensure signal integrity
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Integrated Reclocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Subrates and 270 Mbps
► Directly compatible with 12G/6G/3G-SDI camera systems
► Long transmission capability up to 80 km
► Support 2Ch Backwards RS485
► Supports 1Ch 10/100/1000M Ethernet
► Full digital non-compression broadcast level transmission;
► Super optic dynamic range and free of adjustment;
► Fiber optic WDM/CWDM/DWDM technique
SDI Over Fiber Optic Extender's Technical Parameters:
| Formats | Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD) |
| Compatible | Compatible With DVB-ASI and AES10 (MADI) |
| Input | 1 x 12G-SDI on BNC |
| Output | 2 x FC optical fiber |
| | 1 x 12G-SDI loop-out on BNC |
| Supported Resolution | HDTV 4K*2K, 1080P, 1080I, 720P |
| Resolution range | 3840*2160@60Hz |
| Input cable specification | ≤70m@12G SDI Belden 1694A |
| Data type | 2Ch Backward RS485 |
| Optical transmission bandwidth | 270MHz～12GHz |
| Storage Temperature | -40℃～85℃ |

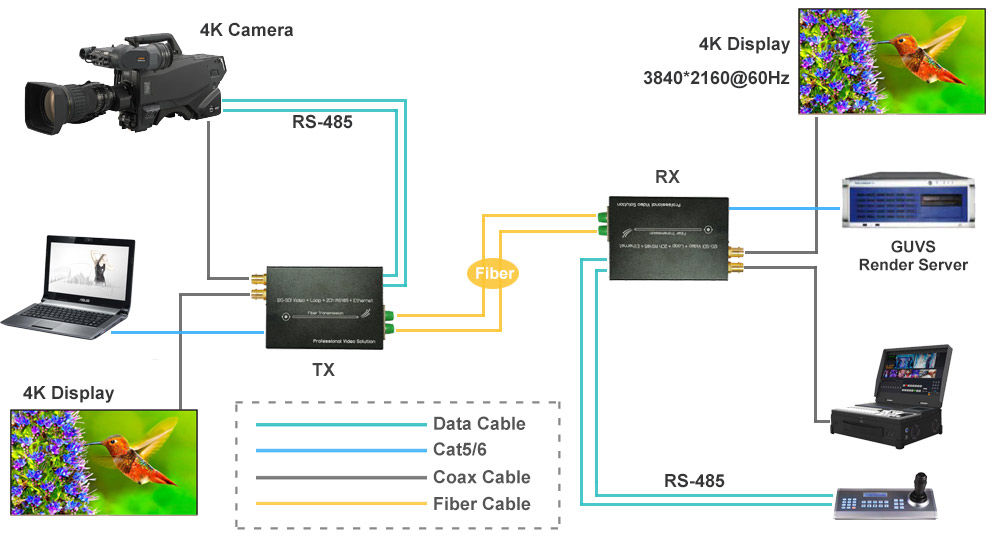

SDI Over Fiber Optic Extender's Application:
SDI Over Fiber Optic Extender‘s Support and Services:
SDI Over Fiber Optic Extender technical support and services include:
- 24/7 online technical support
- Free installation services
- Onsite technical support
- Regular system updates and upgrades
- Training and education
SDI Over Fiber Optic Extender's Packing and Shipping:
SDI Over Fiber Optic Extender is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
